1. Basic Make-up and Structural Attributes of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Transition

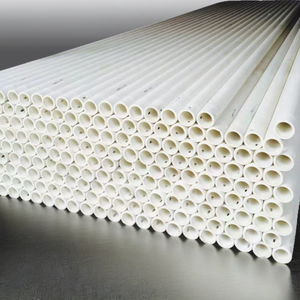

(Quartz Ceramics)
Quartz porcelains, additionally known as integrated silica or integrated quartz, are a class of high-performance inorganic products derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) form.
Unlike traditional porcelains that depend on polycrystalline structures, quartz porcelains are differentiated by their full lack of grain limits because of their lustrous, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional arbitrary network.
This amorphous framework is accomplished through high-temperature melting of all-natural quartz crystals or synthetic silica precursors, followed by fast cooling to prevent formation.
The resulting material includes typically over 99.9% SiO TWO, with trace pollutants such as alkali metals (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million degrees to protect optical quality, electrical resistivity, and thermal performance.
The absence of long-range order removes anisotropic behavior, making quartz porcelains dimensionally stable and mechanically consistent in all directions– an important advantage in precision applications.
1.2 Thermal Actions and Resistance to Thermal Shock
One of one of the most defining functions of quartz ceramics is their exceptionally reduced coefficient of thermal growth (CTE), generally around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero growth arises from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal stress without damaging, allowing the material to endure rapid temperature level modifications that would crack standard porcelains or steels.
Quartz porcelains can endure thermal shocks going beyond 1000 ° C, such as direct immersion in water after heating to red-hot temperatures, without cracking or spalling.
This property makes them crucial in environments involving duplicated home heating and cooling cycles, such as semiconductor handling heating systems, aerospace components, and high-intensity illumination systems.
Additionally, quartz ceramics keep structural integrity approximately temperature levels of around 1100 ° C in constant service, with temporary exposure tolerance approaching 1600 ° C in inert ambiences.
( Quartz Ceramics)
Beyond thermal shock resistance, they display high softening temperatures (~ 1600 ° C )and superb resistance to devitrification– though prolonged direct exposure over 1200 ° C can start surface formation right into cristobalite, which might jeopardize mechanical strength as a result of quantity adjustments throughout stage transitions.
2. Optical, Electric, and Chemical Characteristics of Fused Silica Solution
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their outstanding optical transmission across a large spooky range, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This transparency is enabled by the lack of contaminations and the homogeneity of the amorphous network, which decreases light scattering and absorption.
High-purity artificial merged silica, produced by means of fire hydrolysis of silicon chlorides, accomplishes also greater UV transmission and is made use of in critical applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages limit– resisting malfunction under intense pulsed laser irradiation– makes it suitable for high-energy laser systems used in combination research study and industrial machining.
In addition, its low autofluorescence and radiation resistance guarantee dependability in scientific instrumentation, consisting of spectrometers, UV healing systems, and nuclear tracking devices.
2.2 Dielectric Performance and Chemical Inertness
From an electrical viewpoint, quartz porcelains are impressive insulators with quantity resistivity going beyond 10 ¹⁸ Ω · cm at room temperature and a dielectric constant of roughly 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes sure marginal energy dissipation in high-frequency and high-voltage applications, making them ideal for microwave home windows, radar domes, and protecting substrates in digital assemblies.
These residential properties remain secure over a wide temperature variety, unlike many polymers or standard porcelains that break down electrically under thermal anxiety.
Chemically, quartz ceramics display impressive inertness to most acids, including hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
Nevertheless, they are at risk to assault by hydrofluoric acid (HF) and solid antacids such as warm sodium hydroxide, which break the Si– O– Si network.
This discerning reactivity is manipulated in microfabrication processes where regulated etching of fused silica is called for.
In aggressive commercial environments– such as chemical processing, semiconductor wet benches, and high-purity fluid handling– quartz porcelains act as linings, sight glasses, and reactor elements where contamination must be minimized.
3. Production Processes and Geometric Engineering of Quartz Ceramic Elements
3.1 Thawing and Developing Methods
The production of quartz porcelains includes several specialized melting techniques, each tailored to specific purity and application requirements.
Electric arc melting utilizes high-purity quartz sand melted in a water-cooled copper crucible under vacuum cleaner or inert gas, producing big boules or tubes with outstanding thermal and mechanical properties.
Fire fusion, or combustion synthesis, includes melting silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, depositing fine silica fragments that sinter right into a transparent preform– this method produces the highest possible optical high quality and is utilized for artificial fused silica.
Plasma melting offers an alternate route, giving ultra-high temperature levels and contamination-free processing for specific niche aerospace and protection applications.
As soon as thawed, quartz porcelains can be formed through precision casting, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
Due to their brittleness, machining needs ruby tools and careful control to avoid microcracking.
3.2 Precision Fabrication and Surface Area Finishing
Quartz ceramic components are typically produced right into intricate geometries such as crucibles, tubes, poles, home windows, and custom-made insulators for semiconductor, photovoltaic or pv, and laser markets.
Dimensional precision is critical, specifically in semiconductor manufacturing where quartz susceptors and bell containers should maintain precise alignment and thermal harmony.
Surface ending up plays a crucial function in performance; polished surface areas reduce light scattering in optical components and reduce nucleation sites for devitrification in high-temperature applications.
Engraving with buffered HF solutions can generate controlled surface structures or get rid of damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleansed and baked to get rid of surface-adsorbed gases, making certain marginal outgassing and compatibility with sensitive procedures like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Production
Quartz ceramics are foundational materials in the manufacture of integrated circuits and solar batteries, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their ability to hold up against high temperatures in oxidizing, lowering, or inert atmospheres– integrated with reduced metal contamination– makes sure process purity and return.
During chemical vapor deposition (CVD) or thermal oxidation, quartz parts keep dimensional stability and withstand warping, preventing wafer breakage and imbalance.
In photovoltaic or pv manufacturing, quartz crucibles are made use of to grow monocrystalline silicon ingots via the Czochralski procedure, where their pureness directly influences the electric high quality of the final solar batteries.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sterilization systems, quartz ceramic envelopes consist of plasma arcs at temperatures exceeding 1000 ° C while transferring UV and noticeable light efficiently.
Their thermal shock resistance avoids failure throughout rapid light ignition and shutdown cycles.
In aerospace, quartz ceramics are used in radar home windows, sensing unit housings, and thermal protection systems due to their reduced dielectric continuous, high strength-to-density ratio, and stability under aerothermal loading.
In analytical chemistry and life scientific researches, merged silica capillaries are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness protects against sample adsorption and makes certain exact splitting up.
Furthermore, quartz crystal microbalances (QCMs), which count on the piezoelectric buildings of crystalline quartz (unique from merged silica), use quartz porcelains as safety housings and shielding assistances in real-time mass sensing applications.
To conclude, quartz ceramics stand for an unique intersection of extreme thermal strength, optical transparency, and chemical purity.
Their amorphous framework and high SiO ₂ content make it possible for performance in atmospheres where standard materials fail, from the heart of semiconductor fabs to the side of space.
As modern technology breakthroughs toward greater temperature levels, higher precision, and cleaner processes, quartz ceramics will continue to function as a critical enabler of development across scientific research and sector.
