1. Synthesis, Structure, and Basic Qualities of Fumed Alumina
1.1 Manufacturing System and Aerosol-Phase Formation

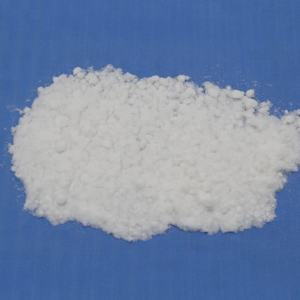

(Fumed Alumina)
Fumed alumina, likewise known as pyrogenic alumina, is a high-purity, nanostructured type of aluminum oxide (Al ₂ O ₃) produced through a high-temperature vapor-phase synthesis procedure.
Unlike traditionally calcined or precipitated aluminas, fumed alumina is generated in a flame reactor where aluminum-containing forerunners– typically aluminum chloride (AlCl six) or organoaluminum compounds– are combusted in a hydrogen-oxygen flame at temperatures going beyond 1500 ° C.
In this severe setting, the precursor volatilizes and undergoes hydrolysis or oxidation to form light weight aluminum oxide vapor, which swiftly nucleates into main nanoparticles as the gas cools.
These nascent bits collide and fuse together in the gas phase, developing chain-like accumulations held with each other by strong covalent bonds, causing a very permeable, three-dimensional network structure.
The whole process takes place in a matter of milliseconds, generating a fine, fluffy powder with exceptional pureness (often > 99.8% Al â‚‚ O THREE) and marginal ionic impurities, making it suitable for high-performance industrial and electronic applications.
The resulting product is collected through filtering, usually utilizing sintered steel or ceramic filters, and after that deagglomerated to differing levels relying on the intended application.
1.2 Nanoscale Morphology and Surface Area Chemistry
The specifying qualities of fumed alumina lie in its nanoscale design and high certain surface area, which generally varies from 50 to 400 m ²/ g, depending on the manufacturing conditions.
Primary bit sizes are generally between 5 and 50 nanometers, and due to the flame-synthesis mechanism, these fragments are amorphous or show a transitional alumina phase (such as γ- or δ-Al ₂ O FOUR), rather than the thermodynamically steady α-alumina (corundum) phase.
This metastable structure contributes to greater surface area sensitivity and sintering task contrasted to crystalline alumina forms.
The surface area of fumed alumina is rich in hydroxyl (-OH) teams, which occur from the hydrolysis action during synthesis and subsequent exposure to ambient wetness.
These surface hydroxyls play a critical role in figuring out the product’s dispersibility, sensitivity, and interaction with natural and inorganic matrices.
( Fumed Alumina)
Depending upon the surface treatment, fumed alumina can be hydrophilic or made hydrophobic through silanization or other chemical alterations, enabling tailored compatibility with polymers, materials, and solvents.
The high surface area energy and porosity likewise make fumed alumina an outstanding candidate for adsorption, catalysis, and rheology modification.
2. Practical Roles in Rheology Control and Diffusion Stablizing
2.1 Thixotropic Behavior and Anti-Settling Systems
One of one of the most technically considerable applications of fumed alumina is its ability to change the rheological residential properties of liquid systems, especially in layers, adhesives, inks, and composite materials.
When distributed at low loadings (commonly 0.5– 5 wt%), fumed alumina creates a percolating network via hydrogen bonding and van der Waals communications in between its branched aggregates, imparting a gel-like structure to otherwise low-viscosity liquids.
This network breaks under shear stress (e.g., throughout cleaning, spraying, or mixing) and reforms when the anxiety is removed, an actions referred to as thixotropy.
Thixotropy is important for preventing sagging in vertical coatings, inhibiting pigment settling in paints, and maintaining homogeneity in multi-component formulas throughout storage space.
Unlike micron-sized thickeners, fumed alumina achieves these results without substantially boosting the general thickness in the employed state, preserving workability and finish quality.
Furthermore, its inorganic nature makes certain lasting stability versus microbial destruction and thermal decomposition, surpassing several natural thickeners in harsh atmospheres.
2.2 Diffusion Techniques and Compatibility Optimization
Achieving uniform dispersion of fumed alumina is essential to maximizing its functional efficiency and avoiding agglomerate defects.
Because of its high surface area and strong interparticle forces, fumed alumina often tends to develop tough agglomerates that are hard to damage down using standard stirring.
High-shear blending, ultrasonication, or three-roll milling are commonly employed to deagglomerate the powder and integrate it into the host matrix.
Surface-treated (hydrophobic) qualities display far better compatibility with non-polar media such as epoxy resins, polyurethanes, and silicone oils, minimizing the energy needed for dispersion.
In solvent-based systems, the selection of solvent polarity have to be matched to the surface chemistry of the alumina to make certain wetting and stability.
Correct diffusion not only enhances rheological control however additionally enhances mechanical reinforcement, optical quality, and thermal security in the final compound.
3. Support and Useful Enhancement in Composite Materials
3.1 Mechanical and Thermal Residential Property Improvement
Fumed alumina functions as a multifunctional additive in polymer and ceramic composites, contributing to mechanical support, thermal stability, and barrier homes.
When well-dispersed, the nano-sized fragments and their network structure restrict polymer chain flexibility, raising the modulus, hardness, and creep resistance of the matrix.
In epoxy and silicone systems, fumed alumina boosts thermal conductivity somewhat while significantly boosting dimensional stability under thermal biking.
Its high melting factor and chemical inertness permit composites to keep integrity at raised temperature levels, making them ideal for electronic encapsulation, aerospace parts, and high-temperature gaskets.
In addition, the thick network developed by fumed alumina can act as a diffusion obstacle, decreasing the leaks in the structure of gases and wetness– valuable in safety finishes and product packaging products.
3.2 Electrical Insulation and Dielectric Performance
Despite its nanostructured morphology, fumed alumina preserves the outstanding electric shielding residential or commercial properties characteristic of light weight aluminum oxide.
With a quantity resistivity surpassing 10 ¹² Ω · centimeters and a dielectric strength of several kV/mm, it is widely used in high-voltage insulation materials, consisting of cable terminations, switchgear, and printed motherboard (PCB) laminates.
When included right into silicone rubber or epoxy materials, fumed alumina not only strengthens the product but likewise helps dissipate warm and subdue partial discharges, enhancing the longevity of electric insulation systems.
In nanodielectrics, the interface between the fumed alumina particles and the polymer matrix plays a critical function in capturing fee providers and customizing the electrical area distribution, bring about boosted break down resistance and minimized dielectric losses.
This interfacial design is a vital focus in the development of next-generation insulation products for power electronic devices and renewable resource systems.
4. Advanced Applications in Catalysis, Polishing, and Arising Technologies
4.1 Catalytic Assistance and Surface Area Reactivity
The high area and surface hydroxyl density of fumed alumina make it an efficient assistance product for heterogeneous catalysts.
It is made use of to distribute energetic steel varieties such as platinum, palladium, or nickel in reactions including hydrogenation, dehydrogenation, and hydrocarbon reforming.
The transitional alumina stages in fumed alumina offer a balance of surface acidity and thermal stability, facilitating solid metal-support communications that avoid sintering and improve catalytic task.
In environmental catalysis, fumed alumina-based systems are used in the removal of sulfur compounds from gas (hydrodesulfurization) and in the decay of unpredictable organic substances (VOCs).
Its capacity to adsorb and trigger particles at the nanoscale user interface settings it as an encouraging prospect for green chemistry and lasting procedure design.
4.2 Accuracy Polishing and Surface Area Ending Up
Fumed alumina, particularly in colloidal or submicron processed forms, is utilized in accuracy brightening slurries for optical lenses, semiconductor wafers, and magnetic storage space media.
Its consistent fragment size, controlled firmness, and chemical inertness allow fine surface area do with minimal subsurface damage.
When combined with pH-adjusted options and polymeric dispersants, fumed alumina-based slurries accomplish nanometer-level surface roughness, critical for high-performance optical and electronic elements.
Arising applications include chemical-mechanical planarization (CMP) in sophisticated semiconductor production, where exact material removal rates and surface harmony are extremely important.
Past typical usages, fumed alumina is being discovered in energy storage, sensing units, and flame-retardant products, where its thermal security and surface performance deal one-of-a-kind benefits.
Finally, fumed alumina represents a merging of nanoscale engineering and useful versatility.
From its flame-synthesized origins to its roles in rheology control, composite support, catalysis, and accuracy production, this high-performance product remains to enable development throughout diverse technical domain names.
As need grows for advanced products with tailored surface area and mass residential or commercial properties, fumed alumina stays a crucial enabler of next-generation commercial and digital systems.
