1. Material Principles and Structural Characteristics of Alumina Ceramics
1.1 Make-up, Crystallography, and Phase Stability

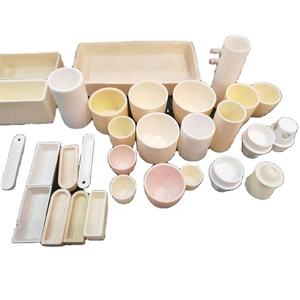

(Alumina Crucible)
Alumina crucibles are precision-engineered ceramic vessels made mainly from aluminum oxide (Al two O THREE), one of the most commonly made use of sophisticated ceramics as a result of its phenomenal mix of thermal, mechanical, and chemical security.
The leading crystalline phase in these crucibles is alpha-alumina (α-Al ₂ O SIX), which comes from the diamond framework– a hexagonal close-packed arrangement of oxygen ions with two-thirds of the octahedral interstices occupied by trivalent aluminum ions.
This thick atomic packaging results in solid ionic and covalent bonding, conferring high melting factor (2072 ° C), superb hardness (9 on the Mohs range), and resistance to creep and deformation at elevated temperatures.
While pure alumina is excellent for many applications, trace dopants such as magnesium oxide (MgO) are usually added during sintering to inhibit grain development and improve microstructural harmony, thus enhancing mechanical toughness and thermal shock resistance.
The stage purity of α-Al ₂ O two is critical; transitional alumina phases (e.g., γ, δ, θ) that create at reduced temperature levels are metastable and undertake volume changes upon conversion to alpha stage, possibly bring about cracking or failing under thermal cycling.
1.2 Microstructure and Porosity Control in Crucible Construction
The efficiency of an alumina crucible is greatly influenced by its microstructure, which is determined throughout powder handling, creating, and sintering stages.
High-purity alumina powders (typically 99.5% to 99.99% Al Two O ₃) are shaped right into crucible forms making use of techniques such as uniaxial pushing, isostatic pressing, or slide casting, followed by sintering at temperatures between 1500 ° C and 1700 ° C.
During sintering, diffusion devices drive particle coalescence, minimizing porosity and raising thickness– ideally attaining > 99% theoretical density to minimize permeability and chemical seepage.
Fine-grained microstructures enhance mechanical strength and resistance to thermal tension, while regulated porosity (in some specialized qualities) can improve thermal shock tolerance by dissipating pressure energy.
Surface finish is additionally essential: a smooth interior surface area minimizes nucleation websites for undesirable responses and promotes easy elimination of solidified products after processing.
Crucible geometry– consisting of wall thickness, curvature, and base style– is optimized to balance warm transfer performance, architectural stability, and resistance to thermal gradients during rapid heating or air conditioning.

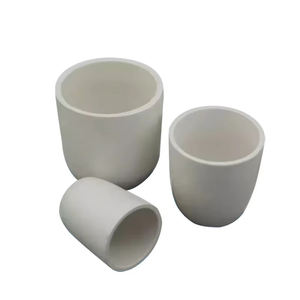

( Alumina Crucible)
2. Thermal and Chemical Resistance in Extreme Environments
2.1 High-Temperature Performance and Thermal Shock Behavior
Alumina crucibles are routinely utilized in environments exceeding 1600 ° C, making them vital in high-temperature materials research, steel refining, and crystal development procedures.
They show reduced thermal conductivity (~ 30 W/m · K), which, while limiting heat transfer rates, likewise supplies a degree of thermal insulation and assists preserve temperature slopes needed for directional solidification or area melting.
A vital difficulty is thermal shock resistance– the ability to endure unexpected temperature level modifications without cracking.
Although alumina has a relatively low coefficient of thermal growth (~ 8 × 10 ⁻⁶/ K), its high rigidity and brittleness make it susceptible to fracture when based on high thermal slopes, particularly during quick home heating or quenching.
To minimize this, customers are recommended to comply with regulated ramping procedures, preheat crucibles progressively, and prevent direct exposure to open up flames or cold surfaces.
Advanced grades include zirconia (ZrO ₂) strengthening or rated structures to enhance split resistance through devices such as stage makeover toughening or recurring compressive anxiety generation.
2.2 Chemical Inertness and Compatibility with Responsive Melts
Among the specifying advantages of alumina crucibles is their chemical inertness towards a wide variety of liquified metals, oxides, and salts.
They are highly resistant to fundamental slags, liquified glasses, and numerous metallic alloys, including iron, nickel, cobalt, and their oxides, which makes them ideal for usage in metallurgical evaluation, thermogravimetric experiments, and ceramic sintering.
However, they are not widely inert: alumina responds with strongly acidic fluxes such as phosphoric acid or boron trioxide at heats, and it can be rusted by molten alkalis like sodium hydroxide or potassium carbonate.
Specifically important is their interaction with aluminum steel and aluminum-rich alloys, which can reduce Al ₂ O three by means of the response: 2Al + Al Two O SIX → 3Al ₂ O (suboxide), causing pitting and ultimate failing.
Likewise, titanium, zirconium, and rare-earth steels show high sensitivity with alumina, creating aluminides or complex oxides that endanger crucible honesty and infect the melt.
For such applications, different crucible materials like yttria-stabilized zirconia (YSZ), boron nitride (BN), or molybdenum are preferred.
3. Applications in Scientific Study and Industrial Handling
3.1 Role in Products Synthesis and Crystal Development
Alumina crucibles are central to numerous high-temperature synthesis courses, including solid-state responses, change growth, and thaw handling of functional porcelains and intermetallics.
In solid-state chemistry, they act as inert containers for calcining powders, manufacturing phosphors, or preparing precursor products for lithium-ion battery cathodes.
For crystal development methods such as the Czochralski or Bridgman methods, alumina crucibles are utilized to contain molten oxides like yttrium light weight aluminum garnet (YAG) or neodymium-doped glasses for laser applications.
Their high pureness makes certain very little contamination of the expanding crystal, while their dimensional security supports reproducible growth problems over expanded durations.
In flux development, where single crystals are grown from a high-temperature solvent, alumina crucibles need to resist dissolution by the change medium– typically borates or molybdates– needing careful option of crucible quality and processing specifications.
3.2 Use in Analytical Chemistry and Industrial Melting Operations
In logical labs, alumina crucibles are basic devices in thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC), where precise mass dimensions are made under regulated environments and temperature ramps.
Their non-magnetic nature, high thermal stability, and compatibility with inert and oxidizing atmospheres make them optimal for such accuracy measurements.
In commercial settings, alumina crucibles are used in induction and resistance furnaces for melting precious metals, alloying, and casting operations, especially in jewelry, dental, and aerospace part production.
They are also used in the manufacturing of technical porcelains, where raw powders are sintered or hot-pressed within alumina setters and crucibles to prevent contamination and guarantee consistent heating.
4. Limitations, Taking Care Of Practices, and Future Product Enhancements
4.1 Functional Constraints and Best Practices for Long Life
Regardless of their effectiveness, alumina crucibles have well-defined operational limits that have to be valued to make certain security and efficiency.
Thermal shock continues to be the most typical reason for failing; consequently, steady heating and cooling down cycles are vital, particularly when transitioning via the 400– 600 ° C range where residual stress and anxieties can accumulate.
Mechanical damage from messing up, thermal biking, or contact with difficult materials can start microcracks that circulate under stress and anxiety.
Cleaning up should be executed meticulously– staying clear of thermal quenching or unpleasant approaches– and used crucibles ought to be evaluated for indications of spalling, discoloration, or contortion prior to reuse.
Cross-contamination is one more concern: crucibles used for responsive or poisonous products must not be repurposed for high-purity synthesis without complete cleaning or ought to be discarded.
4.2 Arising Fads in Composite and Coated Alumina Equipments
To extend the capabilities of conventional alumina crucibles, researchers are establishing composite and functionally rated products.
Instances include alumina-zirconia (Al two O FIVE-ZrO ₂) composites that boost sturdiness and thermal shock resistance, or alumina-silicon carbide (Al ₂ O SIX-SiC) versions that boost thermal conductivity for even more consistent heating.
Surface finishings with rare-earth oxides (e.g., yttria or scandia) are being discovered to produce a diffusion obstacle against responsive steels, thus expanding the series of suitable melts.
Furthermore, additive production of alumina components is arising, making it possible for customized crucible geometries with interior networks for temperature level monitoring or gas circulation, opening new possibilities in process control and reactor layout.
In conclusion, alumina crucibles stay a keystone of high-temperature innovation, valued for their reliability, pureness, and versatility across clinical and industrial domain names.
Their proceeded evolution through microstructural engineering and crossbreed product design guarantees that they will remain important devices in the development of materials science, energy modern technologies, and advanced production.
