1. Chemical and Structural Principles of Boron Carbide
1.1 Crystallography and Stoichiometric Variability

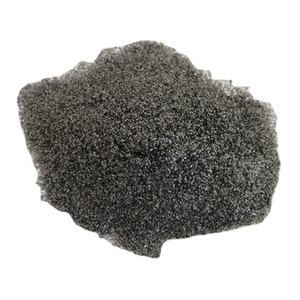

(Boron Carbide Podwer)
Boron carbide (B ₄ C) is a non-metallic ceramic compound renowned for its phenomenal solidity, thermal stability, and neutron absorption capability, placing it among the hardest recognized products– surpassed only by cubic boron nitride and diamond.
Its crystal framework is based on a rhombohedral latticework made up of 12-atom icosahedra (mostly B ₁₂ or B ₁₁ C) adjoined by straight C-B-C or C-B-B chains, developing a three-dimensional covalent network that imparts amazing mechanical stamina.
Unlike numerous porcelains with taken care of stoichiometry, boron carbide exhibits a large range of compositional versatility, normally varying from B FOUR C to B ₁₀. ₃ C, due to the replacement of carbon atoms within the icosahedra and structural chains.
This irregularity influences vital residential or commercial properties such as firmness, electric conductivity, and thermal neutron capture cross-section, allowing for residential property tuning based on synthesis conditions and desired application.
The presence of inherent issues and condition in the atomic arrangement likewise adds to its distinct mechanical behavior, including a phenomenon called “amorphization under stress” at high pressures, which can limit efficiency in extreme influence circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is primarily generated with high-temperature carbothermal decrease of boron oxide (B ₂ O FIVE) with carbon sources such as petroleum coke or graphite in electrical arc heaters at temperature levels between 1800 ° C and 2300 ° C.
The response proceeds as: B TWO O FOUR + 7C → 2B FOUR C + 6CO, yielding coarse crystalline powder that needs succeeding milling and filtration to attain fine, submicron or nanoscale fragments suitable for sophisticated applications.
Alternative techniques such as laser-assisted chemical vapor deposition (CVD), sol-gel handling, and mechanochemical synthesis offer courses to higher pureness and controlled fragment size circulation, though they are frequently restricted by scalability and cost.
Powder characteristics– consisting of fragment size, form, heap state, and surface chemistry– are critical criteria that affect sinterability, packing thickness, and last element efficiency.
For example, nanoscale boron carbide powders show boosted sintering kinetics due to high surface energy, allowing densification at lower temperature levels, but are vulnerable to oxidation and call for safety atmospheres during handling and processing.
Surface functionalization and finishing with carbon or silicon-based layers are increasingly employed to enhance dispersibility and prevent grain growth throughout debt consolidation.

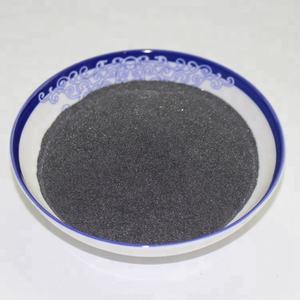

( Boron Carbide Podwer)
2. Mechanical Qualities and Ballistic Performance Mechanisms
2.1 Solidity, Crack Sturdiness, and Use Resistance
Boron carbide powder is the forerunner to one of one of the most reliable lightweight armor materials readily available, owing to its Vickers hardness of about 30– 35 GPa, which allows it to deteriorate and blunt inbound projectiles such as bullets and shrapnel.
When sintered into thick ceramic tiles or incorporated right into composite armor systems, boron carbide outmatches steel and alumina on a weight-for-weight basis, making it perfect for employees protection, automobile armor, and aerospace protecting.
Nevertheless, despite its high solidity, boron carbide has fairly low crack durability (2.5– 3.5 MPa · m ¹ / ²), providing it vulnerable to cracking under local impact or duplicated loading.
This brittleness is aggravated at high strain prices, where vibrant failing systems such as shear banding and stress-induced amorphization can result in disastrous loss of architectural stability.
Recurring study concentrates on microstructural design– such as introducing additional phases (e.g., silicon carbide or carbon nanotubes), producing functionally rated compounds, or designing hierarchical styles– to minimize these restrictions.
2.2 Ballistic Energy Dissipation and Multi-Hit Capacity
In individual and automobile shield systems, boron carbide floor tiles are commonly backed by fiber-reinforced polymer composites (e.g., Kevlar or UHMWPE) that absorb residual kinetic energy and include fragmentation.
Upon impact, the ceramic layer fractures in a controlled way, dissipating power through mechanisms consisting of particle fragmentation, intergranular cracking, and stage makeover.
The fine grain structure stemmed from high-purity, nanoscale boron carbide powder enhances these energy absorption processes by increasing the density of grain boundaries that hamper crack propagation.
Current advancements in powder handling have caused the advancement of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that improve multi-hit resistance– a crucial demand for armed forces and law enforcement applications.
These crafted materials preserve safety efficiency also after preliminary influence, addressing a crucial limitation of monolithic ceramic shield.
3. Neutron Absorption and Nuclear Design Applications
3.1 Interaction with Thermal and Quick Neutrons
Past mechanical applications, boron carbide powder plays a crucial duty in nuclear modern technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When integrated into control rods, protecting products, or neutron detectors, boron carbide successfully regulates fission responses by recording neutrons and undergoing the ¹⁰ B( n, α) seven Li nuclear response, generating alpha fragments and lithium ions that are easily had.
This home makes it vital in pressurized water reactors (PWRs), boiling water reactors (BWRs), and research study reactors, where exact neutron flux control is necessary for secure procedure.
The powder is often made right into pellets, layers, or distributed within metal or ceramic matrices to create composite absorbers with tailored thermal and mechanical residential properties.
3.2 Stability Under Irradiation and Long-Term Performance
An essential advantage of boron carbide in nuclear atmospheres is its high thermal security and radiation resistance approximately temperature levels surpassing 1000 ° C.
Nevertheless, extended neutron irradiation can lead to helium gas accumulation from the (n, α) response, triggering swelling, microcracking, and destruction of mechanical stability– a phenomenon referred to as “helium embrittlement.”
To alleviate this, researchers are developing doped boron carbide formulations (e.g., with silicon or titanium) and composite designs that suit gas release and keep dimensional stability over extensive life span.
In addition, isotopic enrichment of ¹⁰ B boosts neutron capture efficiency while decreasing the complete product volume needed, enhancing reactor style adaptability.
4. Arising and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Rated Components
Recent development in ceramic additive production has enabled the 3D printing of intricate boron carbide elements utilizing techniques such as binder jetting and stereolithography.
In these processes, great boron carbide powder is uniquely bound layer by layer, adhered to by debinding and high-temperature sintering to accomplish near-full density.
This capacity enables the manufacture of tailored neutron shielding geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is integrated with steels or polymers in functionally rated layouts.
Such architectures enhance efficiency by incorporating hardness, durability, and weight efficiency in a solitary component, opening new frontiers in defense, aerospace, and nuclear engineering.
4.2 High-Temperature and Wear-Resistant Industrial Applications
Beyond defense and nuclear fields, boron carbide powder is made use of in unpleasant waterjet cutting nozzles, sandblasting linings, and wear-resistant coverings due to its severe hardness and chemical inertness.
It exceeds tungsten carbide and alumina in erosive environments, particularly when revealed to silica sand or various other difficult particulates.
In metallurgy, it serves as a wear-resistant liner for receptacles, chutes, and pumps taking care of abrasive slurries.
Its low density (~ 2.52 g/cm FIVE) further improves its appeal in mobile and weight-sensitive industrial tools.
As powder quality boosts and handling technologies breakthrough, boron carbide is positioned to broaden right into next-generation applications consisting of thermoelectric products, semiconductor neutron detectors, and space-based radiation securing.
Finally, boron carbide powder represents a keystone product in extreme-environment design, integrating ultra-high hardness, neutron absorption, and thermal strength in a single, versatile ceramic system.
Its function in protecting lives, making it possible for atomic energy, and advancing industrial performance highlights its strategic significance in modern-day technology.
With continued advancement in powder synthesis, microstructural style, and making integration, boron carbide will remain at the leading edge of advanced materials development for decades to come.
