1. Intro to Oil Immersed Transformers
In the elaborate web of our modern-day electrical grid, transformers play an indispensable duty, silently stepping voltage up and down to guarantee electrical power can be transferred successfully over cross countries and distributed securely to our homes and markets. Among the numerous kinds readily available, the oil immersed transformer stands as a testimony to proven reliability and longevity. For years, these workhorses have actually created the foundation of power systems worldwide.
An oil immersed transformer is a type of electrical transformer that uses a specific protecting oil as both a coolant and a shielding medium. This design is primarily made use of for medium to high-power applications, making it a foundation of electric framework. This overview dives deep into the globe of oil submersed power transformers and oil submersed distribution transformers, exploring their innovation, applications, and their progressing role in an age of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil immersed transformer includes a magnetic core and copper or light weight aluminum windings housed inside a secured storage tank filled with protecting oil. The main feature of the oil is twofold:
1. Insulation: The oil possesses high dielectric strength, effectively insulating the high-voltage windings from the transformer’s core and based storage tank. This stops short circuits and electric failures.
2. Air conditioning: As the transformer runs, the windings create significant heat as a result of I ² R losses. The flowing oil absorbs this warmth, convects it to the transformer’s container wall surfaces, and dissipates it right into the surrounding air. Larger systems commonly feature radiators or fins to enhance the surface for extra reliable air conditioning.
This dual-purpose use of oil makes the oil submersed transformer exceptionally effective and robust, capable of taking care of high lots and standing up to transient overloads much better than several dry-type options.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these units are oil immersed transformers, they serve unique functions within the power system network. Understanding the distinction is vital.
An oil immersed power transformer is a heavyweight, commonly made use of in transmission networks at creating terminals and significant substations. Their key function is to “step-up” the voltage created at the nuclear power plant to very high levels (e.g., 138 kV, 230 kV, 500 kV and over) for efficient long-distance transmission, and to “step-down” the voltage at getting substations for further distribution. They are defined by their very high power ratings (usually exceeding 100 MVA), complicated construction, and on-load tap changers for voltage policy.
An oil immersed distribution transformer, on the other hand, performs the final action in the power shipment chain. It takes the tool voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the low voltages (e.g., 400/230 V) utilized by business and property consumers. You typically discover them on utility poles (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have reduced power scores (generally up to 2,500 kVA), and are developed for maximum performance at lower, more constant loads.

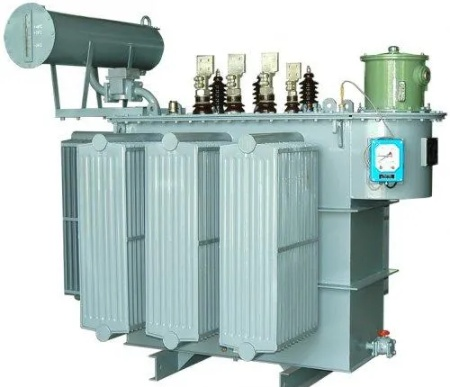

(Oil immersed power transformer)
2. Secret Benefits of Oil Submersed Transformers
The enduring popularity of the oil immersed transformer is not unintended. It offers a collection of compelling advantages that make it the preferred option for several demanding applications.
2.1 Superior Cooling and Overload Capability
The remarkable thermal ability of oil contrasted to air permits an oil submersed power transformer to handle and dissipate heat a lot more successfully. This translates to a higher overload capability. Throughout durations of optimal electrical energy need, an oil immersed transformer can manage temporary overloads without sustaining damage, a critical function for keeping grid security. The oil’s circulation makes sure also warmth circulation, protecting against local hot spots that can deteriorate insulation gradually.
2.2 Improved Insulation and Long Service Life
The mix of high-quality mineral oil and diligently fertilized paper insulation develops a dielectric system of outstanding strength. This robust insulation system secures the transformer from voltage surges and transients, contributing to an operational life-span that can encompass 30-40 years or even more with proper maintenance. The sealed container additionally secures the internal components from wetness, dust, and other atmospheric contaminants.
2.3 High Efficiency and Cost-Effectiveness
For high-power applications, the oil immersed transformer is frequently one of the most cost-effective choice. The products made use of– mineral oil, steel tank, and copper/aluminum windings– provide a favorable equilibrium of performance and cost. The high efficiency of these transformers, especially at their ranked load, results in lower energy losses over their lifetime, causing substantial expense savings for utility business and big industrial individuals.
3. Warm Topics and Future Trends
The globe of oil submersed transformers is not fixed. It is continually evolving to meet new obstacles and incorporate with modern technologies.
3.1 Naturally Degradable and Fireproof Oils
Environmental and security problems are driving a substantial shift away from conventional mineral oil. The market is quickly taking on oil immersed transformers full of biodegradable esters (synthetic or natural). These oils offer a greater fire point (making them K-class fireproof), are much less harmful, and are conveniently eco-friendly, dramatically lowering the ecological effect in instance of a leakage. This fad is making oil immersed distribution transformers much safer for installment in metropolitan locations and environmentally sensitive locations.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil engaged power transformer is becoming an intelligent node in the wise grid. Sensing units are being integrated to keep an eye on key specifications in real-time, including:
Dissolved Gas Analysis (DGA): Detecting mistake gases created within the oil to forecast incipient mistakes.
Temperature Surveillance: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Monitoring.
This information, sent through IoT (Net of Points) platforms, enables anticipating maintenance, protects against unplanned outages, and maximizes transformer utilization and life expectancy.
3.3 Supporting the Renewable Energy Shift
The global promote renewables is producing brand-new demand for oil immersed transformers. Large solar ranches and wind power setups call for durable oil immersed power transformers to step up the produced voltage to transmission levels. Furthermore, the recurring nature of renewables places higher tension on grid parts, and the proven integrity and overload ability of oil immersed transformers make them excellent for this vital function.
4. Choice and Maintenance Ideal Practices
Selecting the best transformer and preserving it effectively is key to a reputable power system.
4.1 Just how to Select the Right Oil Immersed Transformer
Choosing between an oil submersed power transformer and an oil submersed distribution transformer relies on the application. Trick considerations consist of:
1. Voltage Level and kVA Ranking: Suit the transformer’s specifications to your system’s requirements.
2. Application: Transmission substation, industrial plant, or industrial circulation.
3. Place: Indoor vs. outside, ecological conditions, and fire safety and security guidelines (which may affect the selection of protecting oil).
4. Efficiency Standards: Comply with local effectiveness criteria like DOE (U.S.A.) or EU CoC (Europe).
5. Spending plan: Think about both the initial capital price and the overall price of ownership, consisting of losses.
(Oil immersed distribution transformer)
4.2 Essential Upkeep for Long Life
Proactive maintenance is important for any oil immersed transformer. An extensive program should include:
1. Routine Oil Tasting and Screening: Periodic DGA and screening of dielectric stamina and dampness web content are one of the most effective ways to assess the wellness of the transformer.
2. Bushing and Insulation Examination: Visual look for splits, contamination, or leakages.
3. Faucet Changer Maintenance: Regular examination and servicing of on-load or off-load faucet changers.
4. Maintain it Tidy and Dry: Ensuring the container outside, radiators, and breathers are clean and useful.
The oil submersed transformer, in its roles as both a high-capacity oil submersed power transformer and a common oil immersed distribution transformer, continues to be an irreplaceable component of our global energy infrastructure. Its tried and tested style, combined with ongoing developments in insulating liquids and electronic tracking, guarantees it will certainly continue to be a reliable, reliable, and intelligent remedy for powering our world for decades to find. As we build the grids of the future, integrating more renewables and electronic intelligence, the durable and adaptable oil immersed transformer will definitely go to the heart of it.
