Every part in a railway system need to work well. This keeps the system safe and efficient. Railway casting components are extremely important. They give support, attach points, and conduct signals. Their high quality affects how steady the train network is. When you buy these components for South Africa, South America, or Russia, you should find excellent producers. To be successful, you need to understand the neighborhood technical policies. Right here are 5 essential quality standards you must constantly adhere to.
1. Material Make-up & Mechanical Features: The Foundation of Quality
The performance of cast iron relies on its specific chemical structure and casting procedure, and should meet the global or regional requirements of the target market. A trusted railway spreading components maker will certainly give full material traceability.
1.1 Structure Requirements: Have to comply with criteria such as International Requirements (ISO), European Criteria (EN), Russian GOST requirements, or those generally utilized in South America like IRAM (Argentina) and ABNT NBR (Brazil). The web content of harmful components like phosphorus and sulfur must be strictly regulated.
1.2 Mechanical Properties: Concentrate on tensile stamina, return stamina, firmness, and prolongation. For ductile iron, refer to requirements such as ISO 1083, EN 1563, or GOST 28394. Procurement needs to require vendors to provide material certificates and mechanical test reports that adhere to the target market’s demands.

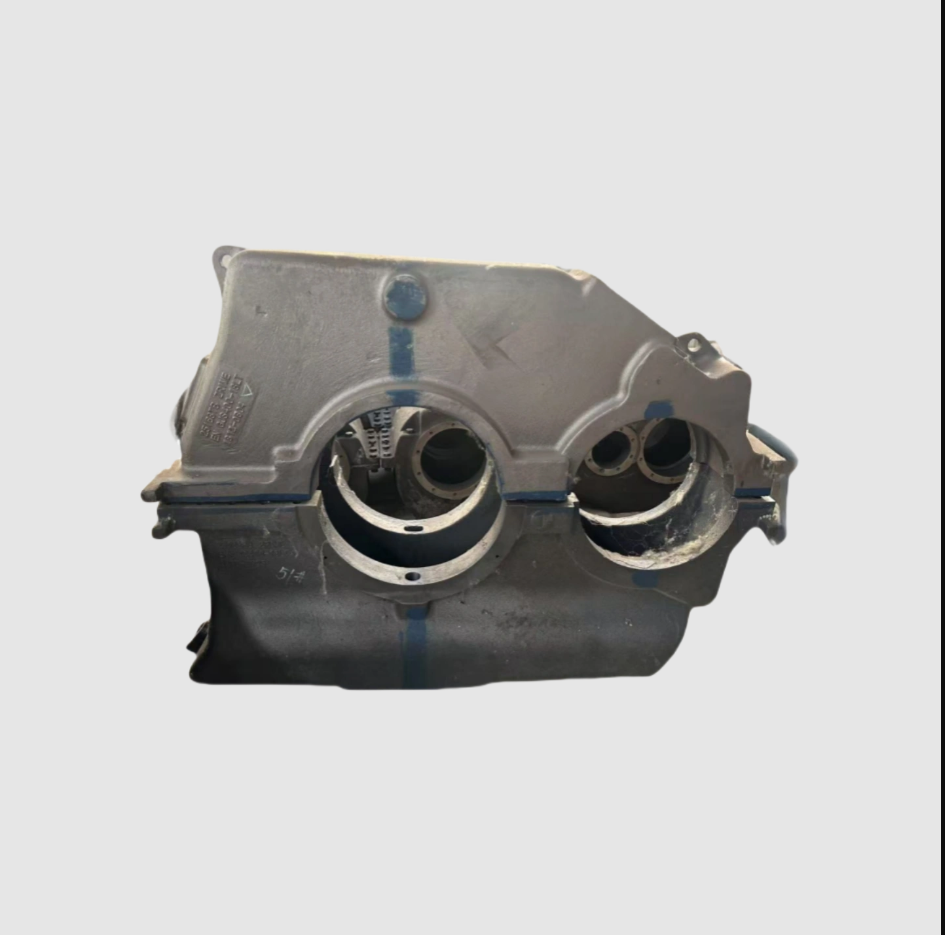

(Railway Cast Iron Gearbox)
2. Dimensional Accuracy & Tolerance Control: Making Certain a “Perfect Fit”
Railway tasks worldwide have stringent demands for dimensional interchangeability; any kind of inconsistency can impact system assimilation. Precision is a mark of remarkable railway casting manufacturers.
2.1 Critical Dimensions: All interface measurements and mounting hole settings for all railway spreading components should be 100% inspected.
2.2 Tolerance Specifications: Must follow worldwide acknowledged standards like ISO 2768, or specific tolerance demands explicitly agreed upon with the customer. For the Russian and CIS markets, special interest should be paid to following relevant resistance requirements in GOST 30893.
3. Limits on Casting Flaws: Removing Internal Hidden Dangers
The acceptance criteria for casting issues need to be clearly defined in contracts and based on worldwide or regionally recognized specs. Leading train casting parts producer procedures employ rigorous non-destructive testing.
3.1 Surface Issues: Criteria like ISO 8062 can be referenced for evaluating spreading surface area high quality. Cracks, cold shuts, and various other issues impacting service are not allowed.
3.2 Interior Issues: For essential load-bearing train casting components, non-destructive testing (e.g., ultrasonic, radiographic) must be done according to criteria like ISO 4990, EN 12680, or the GOST R 55724 series, with clear acceptance levels for issues.
4. Metallographic Structure & Internal Quality
The tiny structure of the material is the crucial basis for judging whether its internal high quality satisfies the standard. This is an important check for any kind of professional railway casting components manufacturer.
4.1 Ductile Iron: The analysis of nodularization rate should adhere to criteria such as ISO 945-1 or GOST 3443 to guarantee its mechanical properties satisfy the demands for usage under intricate working problems.
4.2 Graphite Morphology & Matrix Framework: The metallographic evaluation record is a crucial paper for verifying the security of the production procedure and must abide by the appropriate international or regional requirements.

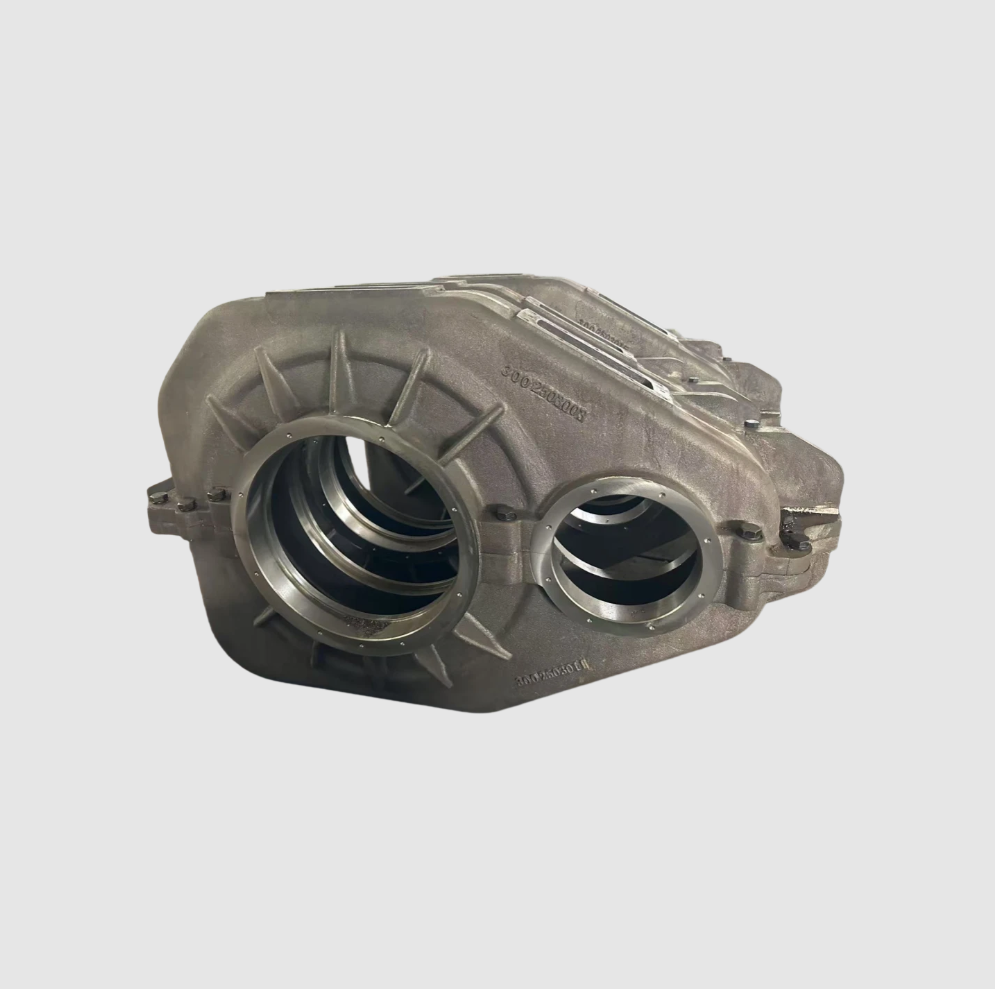

(Railway Cast Iron Gearbox)
5. Anti-Corrosion Therapy & Surface Quality: Withstanding Harsh Environments
Given South Africa’s coastal high salinity, South America’s tropical jungle moisture, and Russia’s severe cool and de-icing salts, anti-corrosion therapy for railway spreading elements is essential.
5.1 Therapy Processes: Define the sort of anti-corrosion procedure, such as hot-dip galvanizing (ISO 1461), epoxy layer, etc, and define vital indications like finish density, attachment ( e.g., ISO 2409), and salt spray resistance ( e.g., ISO 9227).
5.2 Regional Specifications: Need to pay attention to particular requirements of the target market, such as Russia’s GOST 9.307 anti-corrosion system certification, or South Africa’s SANS (South African National Standard) standards. A worldwide train spreading suppliers will certainly recognize with these varied needs.
