1. The Nanoscale Architecture and Material Science of Aerogels
1.1 Genesis and Fundamental Structure of Aerogel Materials

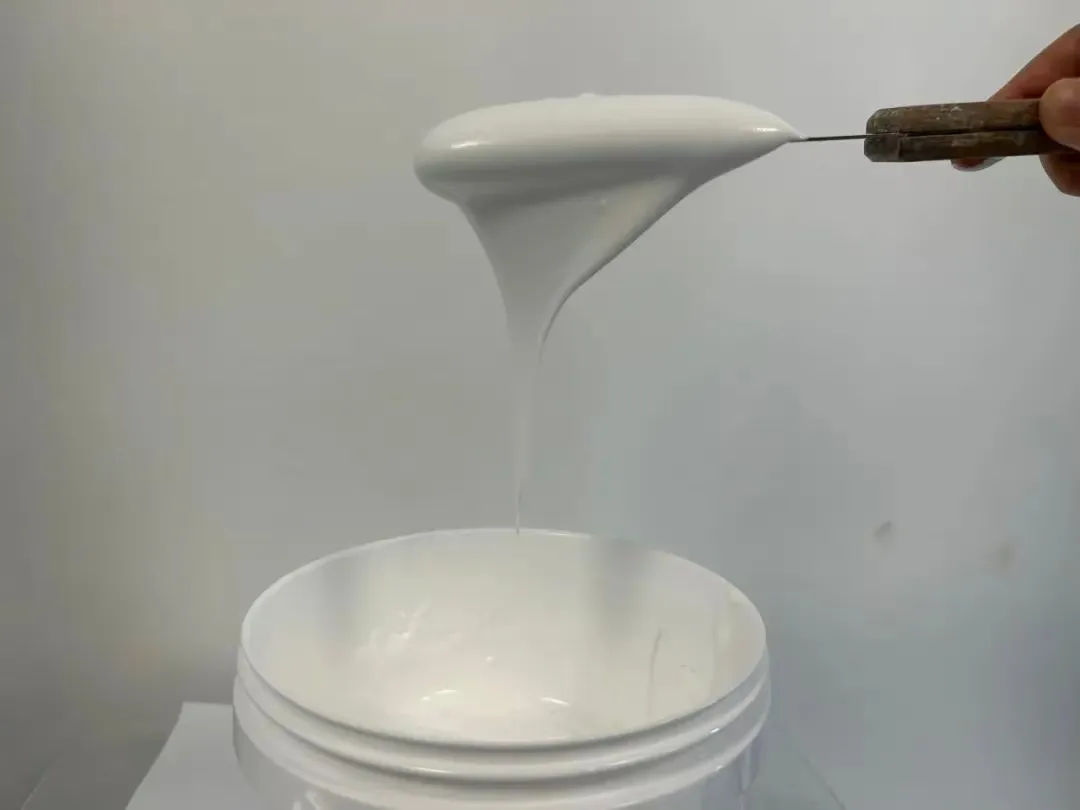

(Aerogel Insulation Coatings)
Aerogel insulation finishings stand for a transformative innovation in thermal management modern technology, rooted in the one-of-a-kind nanostructure of aerogels– ultra-lightweight, permeable materials stemmed from gels in which the fluid component is replaced with gas without breaking down the strong network.
First developed in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory interests for years as a result of fragility and high production expenses.
Nevertheless, recent advancements in sol-gel chemistry and drying techniques have actually allowed the assimilation of aerogel fragments right into versatile, sprayable, and brushable covering formulas, unlocking their potential for extensive industrial application.
The core of aerogel’s outstanding insulating capability hinges on its nanoscale permeable framework: generally composed of silica (SiO â‚‚), the product exhibits porosity surpassing 90%, with pore dimensions mostly in the 2– 50 nm range– well below the mean cost-free path of air molecules (~ 70 nm at ambient conditions).
This nanoconfinement dramatically decreases aeriform thermal transmission, as air particles can not successfully move kinetic energy through accidents within such constrained rooms.
Simultaneously, the solid silica network is engineered to be very tortuous and discontinuous, lessening conductive heat transfer through the solid stage.
The result is a material with one of the most affordable thermal conductivities of any strong understood– typically between 0.012 and 0.018 W/m · K at area temperature level– going beyond standard insulation materials like mineral wool, polyurethane foam, or increased polystyrene.
1.2 Advancement from Monolithic Aerogels to Composite Coatings
Early aerogels were created as fragile, monolithic blocks, restricting their use to specific niche aerospace and scientific applications.
The change toward composite aerogel insulation finishings has actually been driven by the requirement for flexible, conformal, and scalable thermal barriers that can be related to complex geometries such as pipelines, valves, and irregular devices surfaces.
Modern aerogel finishings incorporate finely grated aerogel granules (commonly 1– 10 µm in size) distributed within polymeric binders such as polymers, silicones, or epoxies.

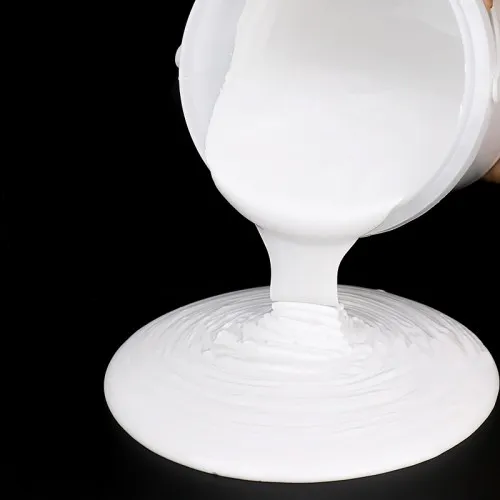

( Aerogel Insulation Coatings)
These hybrid solutions keep a lot of the innate thermal performance of pure aerogels while obtaining mechanical effectiveness, attachment, and weather resistance.
The binder phase, while slightly increasing thermal conductivity, provides essential communication and allows application by means of basic industrial techniques consisting of spraying, rolling, or dipping.
Crucially, the volume fraction of aerogel fragments is maximized to balance insulation efficiency with film honesty– normally varying from 40% to 70% by volume in high-performance formulas.
This composite technique maintains the Knudsen impact (the suppression of gas-phase conduction in nanopores) while permitting tunable residential or commercial properties such as flexibility, water repellency, and fire resistance.
2. Thermal Efficiency and Multimodal Heat Transfer Reductions
2.1 Systems of Thermal Insulation at the Nanoscale
Aerogel insulation layers achieve their superior performance by all at once subduing all 3 settings of heat transfer: transmission, convection, and radiation.
Conductive heat transfer is decreased through the mix of reduced solid-phase connection and the nanoporous framework that impedes gas molecule motion.
Because the aerogel network contains exceptionally slim, interconnected silica strands (typically just a couple of nanometers in size), the path for phonon transportation (heat-carrying lattice resonances) is extremely restricted.
This structural design properly decouples adjacent regions of the coating, minimizing thermal bridging.
Convective warm transfer is inherently absent within the nanopores as a result of the lack of ability of air to develop convection currents in such confined spaces.
Even at macroscopic scales, effectively used aerogel coverings get rid of air gaps and convective loopholes that plague typical insulation systems, especially in vertical or overhead setups.
Radiative warm transfer, which ends up being significant at elevated temperatures (> 100 ° C), is alleviated via the incorporation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These ingredients boost the finish’s opacity to infrared radiation, spreading and taking in thermal photons before they can traverse the coating density.
The synergy of these devices results in a material that supplies equal insulation performance at a fraction of the thickness of standard materials– typically attaining R-values (thermal resistance) a number of times greater each thickness.
2.2 Performance Throughout Temperature Level and Environmental Problems
One of one of the most compelling advantages of aerogel insulation layers is their regular efficiency throughout a broad temperature level range, commonly varying from cryogenic temperature levels (-200 ° C) to over 600 ° C, relying on the binder system made use of.
At reduced temperatures, such as in LNG pipelines or refrigeration systems, aerogel coverings stop condensation and reduce warm access much more effectively than foam-based alternatives.
At high temperatures, especially in commercial procedure devices, exhaust systems, or power generation facilities, they safeguard underlying substratums from thermal destruction while decreasing energy loss.
Unlike organic foams that may disintegrate or char, silica-based aerogel layers remain dimensionally steady and non-combustible, contributing to passive fire defense methods.
Additionally, their low water absorption and hydrophobic surface treatments (usually attained via silane functionalization) protect against efficiency degradation in moist or wet atmospheres– a typical failing setting for fibrous insulation.
3. Formulation Methods and Functional Assimilation in Coatings
3.1 Binder Selection and Mechanical Property Engineering
The option of binder in aerogel insulation finishings is essential to balancing thermal efficiency with toughness and application versatility.
Silicone-based binders provide superb high-temperature stability and UV resistance, making them suitable for outside and industrial applications.
Polymer binders provide good attachment to metals and concrete, along with simplicity of application and reduced VOC discharges, ideal for building envelopes and cooling and heating systems.
Epoxy-modified formulations boost chemical resistance and mechanical stamina, helpful in aquatic or harsh environments.
Formulators also include rheology modifiers, dispersants, and cross-linking agents to guarantee uniform bit circulation, prevent working out, and improve film development.
Versatility is thoroughly tuned to stay clear of breaking throughout thermal cycling or substrate deformation, specifically on dynamic frameworks like expansion joints or vibrating equipment.
3.2 Multifunctional Enhancements and Smart Finish Possible
Beyond thermal insulation, contemporary aerogel coverings are being crafted with extra functionalities.
Some formulations include corrosion-inhibiting pigments or self-healing agents that prolong the life expectancy of metallic substratums.
Others integrate phase-change products (PCMs) within the matrix to give thermal power storage space, smoothing temperature level changes in structures or digital units.
Emerging study discovers the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to allow in-situ tracking of layer honesty or temperature circulation– paving the way for “clever” thermal administration systems.
These multifunctional abilities position aerogel finishes not simply as easy insulators yet as active parts in intelligent infrastructure and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Fostering
4.1 Energy Efficiency in Building and Industrial Sectors
Aerogel insulation finishes are progressively released in commercial structures, refineries, and power plants to reduce energy usage and carbon emissions.
Applied to steam lines, central heating boilers, and heat exchangers, they considerably lower heat loss, improving system efficiency and minimizing fuel need.
In retrofit circumstances, their thin account permits insulation to be included without major structural alterations, preserving room and lessening downtime.
In property and commercial building and construction, aerogel-enhanced paints and plasters are utilized on walls, roofing systems, and windows to boost thermal comfort and lower cooling and heating loads.
4.2 Particular Niche and High-Performance Applications
The aerospace, vehicle, and electronics sectors take advantage of aerogel finishings for weight-sensitive and space-constrained thermal monitoring.
In electric vehicles, they secure battery loads from thermal runaway and exterior warm sources.
In electronic devices, ultra-thin aerogel layers protect high-power parts and avoid hotspots.
Their use in cryogenic storage space, space habitats, and deep-sea tools highlights their dependability in severe settings.
As manufacturing scales and costs decline, aerogel insulation finishes are poised to become a cornerstone of next-generation sustainable and resistant framework.
