1. Molecular Basis and Functional System
1.1 Protein Chemistry and Surfactant Habits

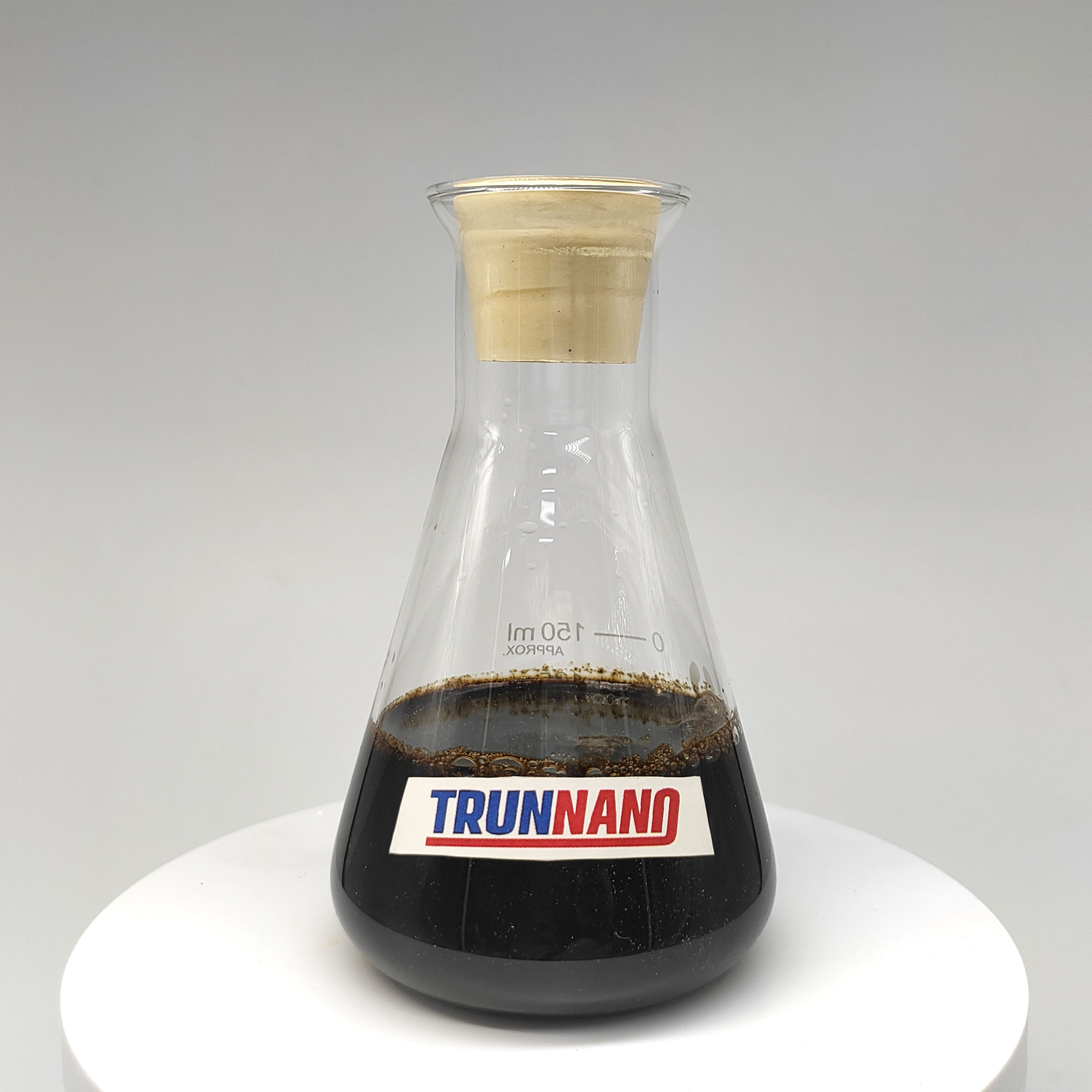

(TR–E Animal Protein Frothing Agent)
TR– E Animal Protein Frothing Agent is a specialized surfactant stemmed from hydrolyzed animal healthy proteins, mostly collagen and keratin, sourced from bovine or porcine byproducts processed under regulated enzymatic or thermal conditions.
The representative functions through the amphiphilic nature of its peptide chains, which include both hydrophobic amino acid residues (e.g., leucine, valine, phenylalanine) and hydrophilic moieties (e.g., lysine, aspartic acid, glutamic acid).
When introduced right into a liquid cementitious system and based on mechanical anxiety, these protein particles move to the air-water user interface, minimizing surface stress and supporting entrained air bubbles.
The hydrophobic sectors orient towards the air stage while the hydrophilic areas remain in the liquid matrix, developing a viscoelastic movie that stands up to coalescence and drain, thereby lengthening foam security.
Unlike synthetic surfactants, TR– E gain from a facility, polydisperse molecular structure that enhances interfacial flexibility and gives exceptional foam strength under variable pH and ionic toughness conditions regular of concrete slurries.
This all-natural protein style enables multi-point adsorption at interfaces, producing a durable network that sustains fine, consistent bubble dispersion necessary for light-weight concrete applications.
1.2 Foam Generation and Microstructural Control
The effectiveness of TR– E depends on its capability to generate a high volume of secure, micro-sized air voids (generally 10– 200 µm in size) with narrow size distribution when incorporated into cement, gypsum, or geopolymer systems.
During blending, the frothing agent is presented with water, and high-shear mixing or air-entraining tools introduces air, which is then stabilized by the adsorbed protein layer.
The resulting foam framework substantially decreases the thickness of the last compound, allowing the manufacturing of light-weight products with thickness ranging from 300 to 1200 kg/m FIVE, depending on foam quantity and matrix make-up.

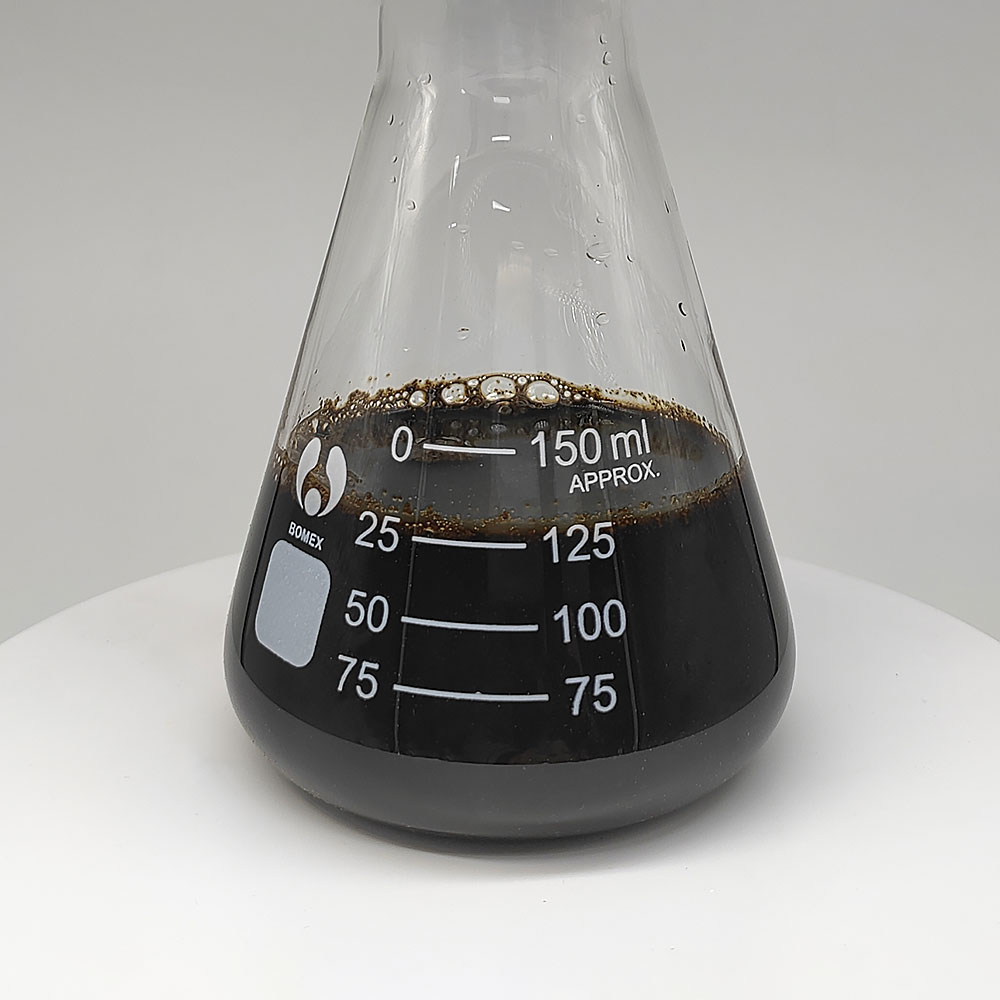

( TR–E Animal Protein Frothing Agent)
Most importantly, the harmony and security of the bubbles conveyed by TR– E lessen partition and bleeding in fresh mixtures, enhancing workability and homogeneity.
The closed-cell nature of the stabilized foam also boosts thermal insulation and freeze-thaw resistance in solidified products, as isolated air spaces interrupt warm transfer and suit ice development without breaking.
Furthermore, the protein-based movie displays thixotropic behavior, preserving foam integrity throughout pumping, casting, and treating without too much collapse or coarsening.
2. Production Process and Quality Assurance
2.1 Raw Material Sourcing and Hydrolysis
The production of TR– E starts with the choice of high-purity animal byproducts, such as conceal trimmings, bones, or plumes, which go through rigorous cleaning and defatting to get rid of organic contaminants and microbial load.
These raw materials are then subjected to controlled hydrolysis– either acid, alkaline, or chemical– to break down the complex tertiary and quaternary structures of collagen or keratin right into soluble polypeptides while maintaining useful amino acid sequences.
Chemical hydrolysis is chosen for its specificity and light problems, minimizing denaturation and preserving the amphiphilic balance essential for frothing efficiency.
( Foam concrete)
The hydrolysate is filteringed system to get rid of insoluble deposits, focused via dissipation, and standardized to a regular solids web content (usually 20– 40%).
Trace steel web content, especially alkali and hefty steels, is kept track of to guarantee compatibility with concrete hydration and to avoid premature setup or efflorescence.
2.2 Formulation and Efficiency Testing
Last TR– E formulas might consist of stabilizers (e.g., glycerol), pH buffers (e.g., salt bicarbonate), and biocides to stop microbial deterioration throughout storage.
The product is normally supplied as a viscous liquid concentrate, calling for dilution before use in foam generation systems.
Quality assurance involves standardized examinations such as foam growth ratio (FER), specified as the quantity of foam generated per unit volume of concentrate, and foam stability index (FSI), determined by the rate of fluid drain or bubble collapse in time.
Performance is additionally evaluated in mortar or concrete tests, examining criteria such as fresh thickness, air web content, flowability, and compressive stamina advancement.
Batch uniformity is ensured through spectroscopic analysis (e.g., FTIR, UV-Vis) and electrophoretic profiling to confirm molecular honesty and reproducibility of frothing behavior.
3. Applications in Building And Construction and Material Scientific Research
3.1 Lightweight Concrete and Precast Aspects
TR– E is commonly employed in the manufacture of autoclaved oxygenated concrete (AAC), foam concrete, and lightweight precast panels, where its dependable frothing activity enables precise control over thickness and thermal properties.
In AAC production, TR– E-generated foam is blended with quartz sand, concrete, lime, and light weight aluminum powder, then healed under high-pressure vapor, causing a mobile structure with outstanding insulation and fire resistance.
Foam concrete for floor screeds, roofing system insulation, and void loading gain from the ease of pumping and placement enabled by TR– E’s steady foam, lowering structural load and material intake.
The agent’s compatibility with different binders, including Portland concrete, combined cements, and alkali-activated systems, expands its applicability across sustainable construction innovations.
Its ability to keep foam stability throughout extended placement times is particularly useful in large or remote building and construction projects.
3.2 Specialized and Arising Uses
Beyond conventional building and construction, TR– E locates use in geotechnical applications such as lightweight backfill for bridge abutments and passage cellular linings, where reduced lateral planet pressure protects against architectural overloading.
In fireproofing sprays and intumescent coatings, the protein-stabilized foam contributes to char development and thermal insulation during fire direct exposure, boosting easy fire protection.
Study is exploring its function in 3D-printed concrete, where regulated rheology and bubble stability are important for layer bond and shape retention.
Additionally, TR– E is being adjusted for use in dirt stabilization and mine backfill, where lightweight, self-hardening slurries improve security and reduce ecological influence.
Its biodegradability and reduced poisoning contrasted to synthetic foaming representatives make it a beneficial choice in eco-conscious building and construction practices.
4. Environmental and Efficiency Advantages
4.1 Sustainability and Life-Cycle Impact
TR– E represents a valorization pathway for animal processing waste, changing low-value by-products into high-performance building additives, thus supporting circular economy principles.
The biodegradability of protein-based surfactants decreases lasting environmental perseverance, and their low water toxicity lessens environmental dangers throughout production and disposal.
When included into structure products, TR– E adds to power performance by allowing lightweight, well-insulated structures that minimize home heating and cooling down demands over the building’s life process.
Contrasted to petrochemical-derived surfactants, TR– E has a reduced carbon impact, specifically when produced using energy-efficient hydrolysis and waste-heat recovery systems.
4.2 Performance in Harsh Conditions
Among the essential advantages of TR– E is its security in high-alkalinity settings (pH > 12), typical of cement pore solutions, where numerous protein-based systems would certainly denature or shed capability.
The hydrolyzed peptides in TR– E are selected or modified to resist alkaline deterioration, ensuring regular frothing performance throughout the setup and healing phases.
It likewise executes accurately throughout a variety of temperature levels (5– 40 ° C), making it suitable for usage in varied climatic problems without calling for warmed storage space or ingredients.
The resulting foam concrete exhibits enhanced longevity, with minimized water absorption and enhanced resistance to freeze-thaw biking because of maximized air gap structure.
In conclusion, TR– E Pet Healthy protein Frothing Representative exemplifies the combination of bio-based chemistry with sophisticated construction products, using a lasting, high-performance service for lightweight and energy-efficient building systems.
Its continued development supports the change towards greener infrastructure with reduced environmental impact and improved functional efficiency.
