1. Composition and Architectural Properties of Fused Quartz
1.1 Amorphous Network and Thermal Stability

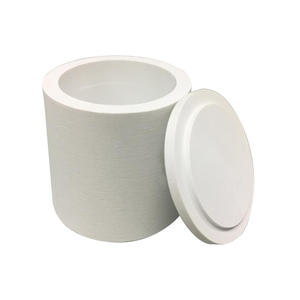

(Quartz Crucibles)
Quartz crucibles are high-temperature containers produced from integrated silica, an artificial kind of silicon dioxide (SiO ₂) stemmed from the melting of all-natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica possesses an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which conveys extraordinary thermal shock resistance and dimensional security under quick temperature adjustments.
This disordered atomic framework prevents cleavage along crystallographic aircrafts, making integrated silica less susceptible to fracturing throughout thermal biking compared to polycrystalline porcelains.
The product exhibits a low coefficient of thermal growth (~ 0.5 × 10 ⁻⁶/ K), one of the lowest amongst design products, enabling it to endure extreme thermal slopes without fracturing– a vital residential or commercial property in semiconductor and solar battery production.
Integrated silica additionally preserves outstanding chemical inertness against many acids, molten metals, and slags, although it can be slowly engraved by hydrofluoric acid and warm phosphoric acid.
Its high softening point (~ 1600– 1730 ° C, depending upon purity and OH material) allows sustained operation at raised temperature levels needed for crystal growth and metal refining processes.
1.2 Purity Grading and Micronutrient Control
The performance of quartz crucibles is very dependent on chemical purity, particularly the concentration of metal pollutants such as iron, sodium, potassium, light weight aluminum, and titanium.
Also trace amounts (parts per million level) of these pollutants can migrate right into molten silicon throughout crystal growth, deteriorating the electrical residential properties of the resulting semiconductor product.
High-purity qualities used in electronic devices making usually contain over 99.95% SiO TWO, with alkali metal oxides limited to much less than 10 ppm and transition steels listed below 1 ppm.
Impurities stem from raw quartz feedstock or processing equipment and are reduced through mindful selection of mineral sources and filtration methods like acid leaching and flotation.
Additionally, the hydroxyl (OH) content in fused silica affects its thermomechanical actions; high-OH types offer much better UV transmission yet reduced thermal stability, while low-OH variations are chosen for high-temperature applications as a result of lowered bubble formation.

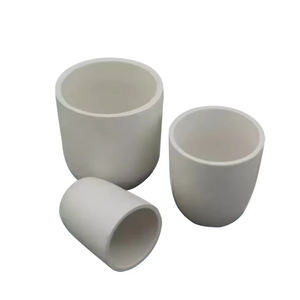

( Quartz Crucibles)
2. Manufacturing Refine and Microstructural Design
2.1 Electrofusion and Creating Strategies
Quartz crucibles are mostly created using electrofusion, a process in which high-purity quartz powder is fed into a turning graphite mold within an electric arc furnace.
An electric arc produced in between carbon electrodes melts the quartz fragments, which solidify layer by layer to create a seamless, dense crucible shape.
This technique creates a fine-grained, uniform microstructure with minimal bubbles and striae, necessary for consistent heat circulation and mechanical stability.
Different methods such as plasma fusion and flame fusion are utilized for specialized applications needing ultra-low contamination or details wall surface thickness profiles.
After casting, the crucibles go through regulated cooling (annealing) to ease inner anxieties and prevent spontaneous fracturing during service.
Surface area ending up, consisting of grinding and polishing, makes certain dimensional precision and reduces nucleation websites for undesirable crystallization during usage.
2.2 Crystalline Layer Design and Opacity Control
A defining feature of contemporary quartz crucibles, especially those made use of in directional solidification of multicrystalline silicon, is the engineered internal layer framework.
During production, the inner surface area is often dealt with to promote the development of a slim, regulated layer of cristobalite– a high-temperature polymorph of SiO TWO– upon first heating.
This cristobalite layer acts as a diffusion obstacle, minimizing direct communication in between molten silicon and the underlying fused silica, thus reducing oxygen and metal contamination.
Furthermore, the existence of this crystalline stage enhances opacity, boosting infrared radiation absorption and advertising more uniform temperature level distribution within the melt.
Crucible developers thoroughly stabilize the density and connection of this layer to prevent spalling or cracking due to quantity adjustments during phase changes.
3. Practical Efficiency in High-Temperature Applications
3.1 Role in Silicon Crystal Development Processes
Quartz crucibles are vital in the manufacturing of monocrystalline and multicrystalline silicon, functioning as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped into molten silicon held in a quartz crucible and slowly drew upwards while revolving, enabling single-crystal ingots to form.
Although the crucible does not directly speak to the growing crystal, communications between liquified silicon and SiO ₂ wall surfaces lead to oxygen dissolution into the thaw, which can influence service provider lifetime and mechanical toughness in completed wafers.
In DS procedures for photovoltaic-grade silicon, large-scale quartz crucibles allow the controlled cooling of thousands of kilos of molten silicon into block-shaped ingots.
Below, finishings such as silicon nitride (Si five N FOUR) are put on the internal surface to prevent adhesion and help with very easy release of the solidified silicon block after cooling down.
3.2 Deterioration Mechanisms and Service Life Limitations
Despite their robustness, quartz crucibles break down throughout repeated high-temperature cycles as a result of numerous interrelated devices.
Thick flow or deformation occurs at prolonged exposure over 1400 ° C, leading to wall surface thinning and loss of geometric integrity.
Re-crystallization of fused silica right into cristobalite creates inner tensions due to volume growth, potentially triggering fractures or spallation that infect the melt.
Chemical disintegration occurs from reduction responses between liquified silicon and SiO TWO: SiO ₂ + Si → 2SiO(g), creating unpredictable silicon monoxide that escapes and damages the crucible wall.
Bubble formation, driven by trapped gases or OH teams, better endangers architectural stamina and thermal conductivity.
These deterioration paths restrict the number of reuse cycles and require accurate process control to make the most of crucible life-span and item return.
4. Emerging Innovations and Technological Adaptations
4.1 Coatings and Composite Alterations
To boost performance and durability, advanced quartz crucibles include functional coverings and composite structures.
Silicon-based anti-sticking layers and drugged silica layers enhance release characteristics and reduce oxygen outgassing throughout melting.
Some makers incorporate zirconia (ZrO ₂) bits right into the crucible wall to increase mechanical toughness and resistance to devitrification.
Study is ongoing right into fully clear or gradient-structured crucibles created to enhance radiant heat transfer in next-generation solar furnace designs.
4.2 Sustainability and Recycling Obstacles
With raising need from the semiconductor and photovoltaic or pv industries, lasting use of quartz crucibles has actually become a concern.
Spent crucibles polluted with silicon deposit are challenging to reuse as a result of cross-contamination threats, resulting in substantial waste generation.
Initiatives focus on establishing reusable crucible linings, enhanced cleansing protocols, and closed-loop recycling systems to recuperate high-purity silica for second applications.
As gadget effectiveness demand ever-higher material purity, the function of quartz crucibles will remain to advance with development in materials scientific research and procedure engineering.
In summary, quartz crucibles represent a critical user interface in between resources and high-performance electronic items.
Their distinct combination of pureness, thermal resilience, and architectural layout allows the fabrication of silicon-based innovations that power contemporary computing and renewable energy systems.
