1. Material Fundamentals and Microstructural Qualities of Alumina Ceramics
1.1 Structure, Pureness Qualities, and Crystallographic Residence

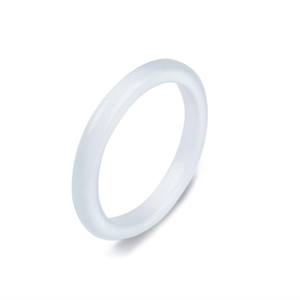

(Alumina Ceramic Wear Liners)
Alumina (Al ₂ O TWO), or light weight aluminum oxide, is among one of the most extensively made use of technological porcelains in commercial design due to its superb balance of mechanical stamina, chemical security, and cost-effectiveness.
When crafted right into wear linings, alumina ceramics are typically fabricated with pureness degrees ranging from 85% to 99.9%, with greater pureness corresponding to improved hardness, wear resistance, and thermal efficiency.
The leading crystalline phase is alpha-alumina, which adopts a hexagonal close-packed (HCP) structure identified by solid ionic and covalent bonding, contributing to its high melting factor (~ 2072 ° C )and low thermal conductivity.
Microstructurally, alumina ceramics contain penalty, equiaxed grains whose dimension and distribution are controlled throughout sintering to maximize mechanical properties.
Grain dimensions commonly vary from submicron to a number of micrometers, with finer grains usually boosting fracture sturdiness and resistance to fracture breeding under rough packing.
Minor ingredients such as magnesium oxide (MgO) are typically introduced in trace total up to hinder uncommon grain development throughout high-temperature sintering, making sure uniform microstructure and dimensional stability.
The resulting product shows a Vickers hardness of 1500– 2000 HV, dramatically exceeding that of set steel (normally 600– 800 HV), making it incredibly immune to surface degradation in high-wear settings.
1.2 Mechanical and Thermal Efficiency in Industrial Conditions
Alumina ceramic wear linings are selected largely for their exceptional resistance to rough, erosive, and gliding wear mechanisms prevalent in bulk material dealing with systems.
They possess high compressive toughness (up to 3000 MPa), excellent flexural strength (300– 500 MPa), and exceptional tightness (Young’s modulus of ~ 380 Grade point average), allowing them to stand up to intense mechanical loading without plastic contortion.
Although inherently weak contrasted to steels, their low coefficient of friction and high surface area hardness decrease particle adhesion and lower wear prices by orders of size relative to steel or polymer-based options.
Thermally, alumina preserves architectural honesty as much as 1600 ° C in oxidizing ambiences, allowing usage in high-temperature processing environments such as kiln feed systems, boiler ducting, and pyroprocessing devices.

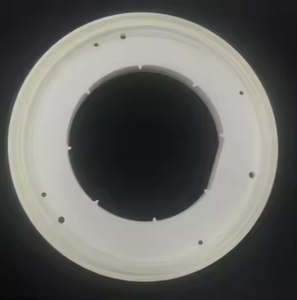

( Alumina Ceramic Wear Liners)
Its reduced thermal expansion coefficient (~ 8 × 10 ⁻⁶/ K) contributes to dimensional stability during thermal cycling, decreasing the threat of cracking as a result of thermal shock when appropriately mounted.
In addition, alumina is electrically protecting and chemically inert to many acids, antacid, and solvents, making it suitable for destructive environments where metallic liners would certainly deteriorate quickly.
These combined homes make alumina porcelains excellent for securing important facilities in mining, power generation, cement production, and chemical handling markets.
2. Production Processes and Layout Assimilation Strategies
2.1 Shaping, Sintering, and Quality Control Protocols
The production of alumina ceramic wear liners includes a series of precision manufacturing steps made to attain high thickness, marginal porosity, and constant mechanical efficiency.
Raw alumina powders are refined through milling, granulation, and developing methods such as dry pushing, isostatic pushing, or extrusion, relying on the wanted geometry– floor tiles, plates, pipelines, or custom-shaped sectors.
Green bodies are then sintered at temperatures between 1500 ° C and 1700 ° C in air, promoting densification with solid-state diffusion and accomplishing family member thickness exceeding 95%, frequently coming close to 99% of academic thickness.
Full densification is crucial, as recurring porosity works as stress and anxiety concentrators and speeds up wear and crack under service problems.
Post-sintering procedures may consist of diamond grinding or washing to accomplish tight dimensional resistances and smooth surface area coatings that decrease friction and bit trapping.
Each batch goes through rigorous quality assurance, including X-ray diffraction (XRD) for stage analysis, scanning electron microscopy (SEM) for microstructural assessment, and hardness and bend screening to verify compliance with global standards such as ISO 6474 or ASTM B407.
2.2 Placing Techniques and System Compatibility Considerations
Effective integration of alumina wear linings into commercial devices needs careful interest to mechanical accessory and thermal growth compatibility.
Common setup techniques include glue bonding utilizing high-strength ceramic epoxies, mechanical attaching with studs or anchors, and embedding within castable refractory matrices.
Glue bonding is widely used for flat or gently rounded surfaces, providing consistent anxiety distribution and vibration damping, while stud-mounted systems permit very easy replacement and are chosen in high-impact zones.
To fit differential thermal growth between alumina and metallic substrates (e.g., carbon steel), engineered spaces, flexible adhesives, or compliant underlayers are included to stop delamination or cracking during thermal transients.
Designers must likewise consider side defense, as ceramic floor tiles are susceptible to chipping at revealed edges; remedies include diagonal edges, metal shrouds, or overlapping ceramic tile configurations.
Appropriate installation makes certain lengthy life span and makes best use of the safety function of the lining system.
3. Put On Mechanisms and Efficiency Evaluation in Service Environments
3.1 Resistance to Abrasive, Erosive, and Influence Loading
Alumina ceramic wear liners master atmospheres controlled by three key wear systems: two-body abrasion, three-body abrasion, and bit disintegration.
In two-body abrasion, hard particles or surface areas straight gouge the liner surface, an usual event in chutes, receptacles, and conveyor shifts.
Three-body abrasion entails loose particles caught between the liner and relocating material, resulting in rolling and damaging activity that progressively eliminates material.
Abrasive wear occurs when high-velocity particles impinge on the surface area, specifically in pneumatic communicating lines and cyclone separators.
Because of its high hardness and low fracture strength, alumina is most effective in low-impact, high-abrasion scenarios.
It carries out extremely well versus siliceous ores, coal, fly ash, and concrete clinker, where wear rates can be reduced by 10– 50 times compared to mild steel linings.
However, in applications including duplicated high-energy effect, such as primary crusher chambers, crossbreed systems combining alumina floor tiles with elastomeric supports or metal guards are commonly employed to take in shock and prevent crack.
3.2 Field Screening, Life Cycle Analysis, and Failing Mode Analysis
Performance examination of alumina wear linings entails both laboratory screening and field surveillance.
Standardized examinations such as the ASTM G65 completely dry sand rubber wheel abrasion examination supply comparative wear indices, while personalized slurry erosion gears mimic site-specific conditions.
In commercial setups, wear price is commonly determined in mm/year or g/kWh, with service life forecasts based upon initial density and observed destruction.
Failing settings include surface area sprucing up, micro-cracking, spalling at edges, and complete floor tile dislodgement as a result of glue degradation or mechanical overload.
Origin evaluation usually reveals installment mistakes, incorrect quality selection, or unanticipated impact lots as key factors to early failure.
Life cycle price evaluation constantly demonstrates that in spite of greater first costs, alumina linings use remarkable complete price of ownership because of extensive replacement intervals, minimized downtime, and lower upkeep labor.
4. Industrial Applications and Future Technological Advancements
4.1 Sector-Specific Executions Across Heavy Industries
Alumina ceramic wear liners are released across a broad range of industrial fields where material destruction presents operational and financial difficulties.
In mining and mineral processing, they protect transfer chutes, mill liners, hydrocyclones, and slurry pumps from rough slurries containing quartz, hematite, and various other tough minerals.
In nuclear power plant, alumina floor tiles line coal pulverizer air ducts, boiler ash receptacles, and electrostatic precipitator parts subjected to fly ash disintegration.
Concrete manufacturers use alumina linings in raw mills, kiln inlet areas, and clinker conveyors to battle the highly unpleasant nature of cementitious products.
The steel sector utilizes them in blast furnace feed systems and ladle shadows, where resistance to both abrasion and modest thermal loads is important.
Also in less standard applications such as waste-to-energy plants and biomass handling systems, alumina ceramics offer resilient protection versus chemically aggressive and fibrous materials.
4.2 Arising Fads: Composite Systems, Smart Liners, and Sustainability
Current research study concentrates on enhancing the strength and capability of alumina wear systems with composite layout.
Alumina-zirconia (Al ₂ O SIX-ZrO ₂) compounds leverage makeover toughening from zirconia to boost fracture resistance, while alumina-titanium carbide (Al ₂ O FOUR-TiC) grades offer improved performance in high-temperature moving wear.
One more technology involves installing sensing units within or under ceramic linings to monitor wear development, temperature level, and effect regularity– making it possible for predictive upkeep and electronic double integration.
From a sustainability perspective, the prolonged life span of alumina linings minimizes material intake and waste generation, straightening with circular economic situation concepts in industrial procedures.
Recycling of invested ceramic liners right into refractory aggregates or construction materials is also being explored to minimize environmental impact.
To conclude, alumina ceramic wear liners stand for a foundation of modern industrial wear defense technology.
Their exceptional firmness, thermal security, and chemical inertness, combined with fully grown production and setup techniques, make them crucial in combating material degradation throughout heavy markets.
As product science breakthroughs and digital tracking ends up being extra incorporated, the future generation of wise, durable alumina-based systems will certainly better enhance operational efficiency and sustainability in rough atmospheres.
