Intro to Aluminum Nitride Ceramics
Light weight aluminum nitride (AlN) is a high-performance ceramic product that has actually obtained extensive acknowledgment for its phenomenal thermal conductivity, electric insulation, and mechanical security at elevated temperature levels. With a hexagonal wurtzite crystal framework, AlN exhibits an unique combination of properties that make it one of the most excellent substrate product for applications in electronics, optoelectronics, power modules, and high-temperature atmospheres. Its capability to effectively dissipate warmth while keeping exceptional dielectric toughness settings AlN as an exceptional choice to typical ceramic substratums such as alumina and beryllium oxide. This short article discovers the basic attributes of light weight aluminum nitride porcelains, delves into manufacture strategies, and highlights its important duties throughout sophisticated technological domains.

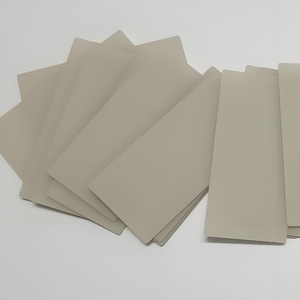

(Aluminum Nitride Ceramics)
Crystal Structure and Essential Residence
The efficiency of light weight aluminum nitride as a substrate product is largely dictated by its crystalline framework and intrinsic physical homes. AlN adopts a wurtzite-type lattice composed of alternating light weight aluminum and nitrogen atoms, which adds to its high thermal conductivity– normally exceeding 180 W/(m · K), with some high-purity examples accomplishing over 320 W/(m · K). This value considerably exceeds those of various other extensively made use of ceramic products, consisting of alumina (~ 24 W/(m · K) )and silicon carbide (~ 90 W/(m · K)).
Along with its thermal performance, AlN possesses a broad bandgap of about 6.2 eV, resulting in outstanding electrical insulation residential properties also at heats. It additionally shows low thermal growth (CTE ≈ 4.5 × 10 ⁻⁶/ K), which closely matches that of silicon and gallium arsenide, making it an optimum match for semiconductor tool packaging. Moreover, AlN shows high chemical inertness and resistance to thaw steels, boosting its viability for rough atmospheres. These consolidated characteristics establish AlN as a prominent prospect for high-power digital substratums and thermally managed systems.
Construction and Sintering Technologies
Making high-grade aluminum nitride porcelains calls for precise powder synthesis and sintering strategies to accomplish dense microstructures with very little pollutants. Due to its covalent bonding nature, AlN does not easily compress through standard pressureless sintering. For that reason, sintering help such as yttrium oxide (Y ₂ O SIX), calcium oxide (CaO), or unusual earth components are generally contributed to advertise liquid-phase sintering and enhance grain limit diffusion.
The fabrication procedure usually begins with the carbothermal reduction of aluminum oxide in a nitrogen environment to synthesize AlN powders. These powders are then milled, shaped through techniques like tape casting or shot molding, and sintered at temperature levels in between 1700 ° C and 1900 ° C under a nitrogen-rich environment. Warm pushing or trigger plasma sintering (SPS) can additionally improve density and thermal conductivity by lowering porosity and advertising grain placement. Advanced additive manufacturing strategies are likewise being checked out to fabricate complex-shaped AlN components with customized thermal monitoring capacities.
Application in Digital Packaging and Power Modules
Among the most popular uses aluminum nitride ceramics is in digital packaging, specifically for high-power tools such as insulated gateway bipolar transistors (IGBTs), laser diodes, and radio frequency (RF) amplifiers. As power densities increase in contemporary electronic devices, reliable warm dissipation comes to be crucial to ensure reliability and long life. AlN substratums supply an ideal remedy by integrating high thermal conductivity with excellent electric seclusion, protecting against short circuits and thermal runaway problems.
Moreover, AlN-based direct bonded copper (DBC) and energetic metal brazed (AMB) substratums are significantly employed in power component styles for electric lorries, renewable energy inverters, and commercial motor drives. Contrasted to standard alumina or silicon nitride substrates, AlN provides much faster warm transfer and better compatibility with silicon chip coefficients of thermal expansion, consequently lowering mechanical anxiety and enhancing total system efficiency. Ongoing study intends to boost the bonding strength and metallization strategies on AlN surfaces to further broaden its application range.
Usage in Optoelectronic and High-Temperature Tools
Beyond electronic packaging, light weight aluminum nitride ceramics play a crucial role in optoelectronic and high-temperature applications due to their openness to ultraviolet (UV) radiation and thermal stability. AlN is widely utilized as a substrate for deep UV light-emitting diodes (LEDs) and laser diodes, specifically in applications needing sterilization, sensing, and optical communication. Its vast bandgap and low absorption coefficient in the UV range make it an excellent prospect for supporting aluminum gallium nitride (AlGaN)-based heterostructures.
Additionally, AlN’s capability to function dependably at temperature levels exceeding 1000 ° C makes it appropriate for usage in sensing units, thermoelectric generators, and parts revealed to severe thermal loads. In aerospace and defense markets, AlN-based sensor packages are utilized in jet engine tracking systems and high-temperature control systems where standard products would certainly fall short. Continual improvements in thin-film deposition and epitaxial growth strategies are increasing the possibility of AlN in next-generation optoelectronic and high-temperature incorporated systems.
( Aluminum Nitride Ceramics)
Ecological Security and Long-Term Integrity
An essential factor to consider for any kind of substrate material is its long-term dependability under functional anxieties. Light weight aluminum nitride demonstrates premium environmental stability contrasted to lots of various other porcelains. It is highly immune to deterioration from acids, antacid, and molten metals, ensuring durability in aggressive chemical atmospheres. Nonetheless, AlN is prone to hydrolysis when revealed to moisture at elevated temperature levels, which can degrade its surface and minimize thermal performance.
To mitigate this issue, safety finishes such as silicon nitride (Si four N FOUR), light weight aluminum oxide, or polymer-based encapsulation layers are commonly related to enhance wetness resistance. In addition, careful securing and packaging methods are applied throughout tool setting up to keep the honesty of AlN substratums throughout their life span. As environmental laws end up being extra stringent, the non-toxic nature of AlN likewise places it as a preferred choice to beryllium oxide, which poses health and wellness risks during handling and disposal.
Conclusion
Light weight aluminum nitride porcelains represent a class of advanced products distinctively fit to deal with the expanding demands for efficient thermal monitoring and electric insulation in high-performance electronic and optoelectronic systems. Their extraordinary thermal conductivity, chemical stability, and compatibility with semiconductor innovations make them one of the most suitable substratum material for a wide range of applications– from automobile power components to deep UV LEDs and high-temperature sensing units. As construction modern technologies continue to develop and cost-efficient manufacturing techniques develop, the adoption of AlN substratums is anticipated to rise significantly, driving development in next-generation electronic and photonic gadgets.
